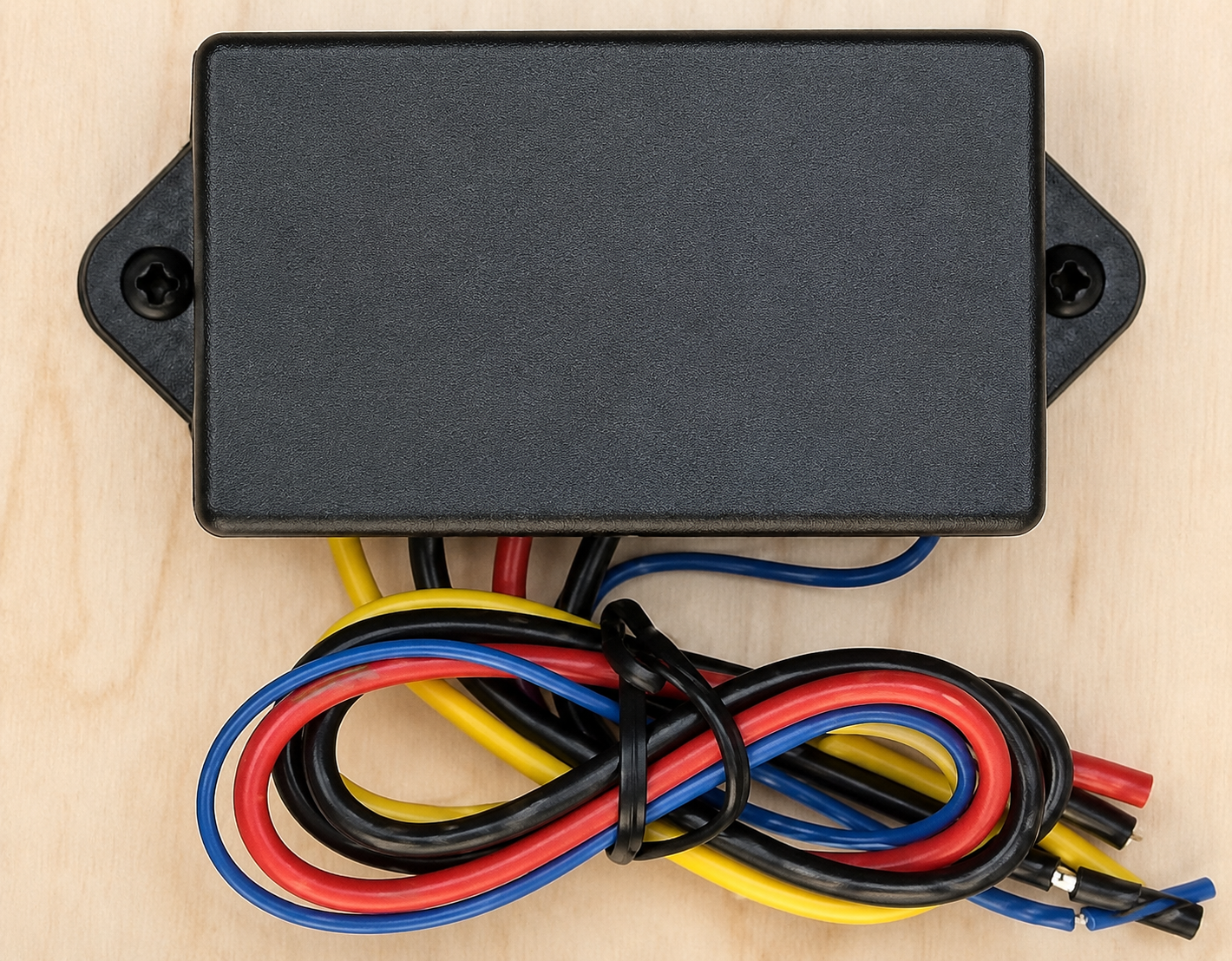

ICESAFE Lite: Carburettor Ice Warning System

Each year there are a number of accidents (including some fatalities), which are attributed to Carburettor icing. Ice formation is subtle and can occur even in warm conditions. It is often not identified in time due to a lack of knowledge or inexperience of the pilot. ICESAFE is a Carburettor Ice warning system designed to improve environmental awareness of the pilot, thereby enhancing the safety of the aircraft. ICESAFE uses precision sensor technology to monitor the atmosphere to detect and warn of conditions which are conducive to icing, before significant formation occurs.

You can buy ICESAFE Lite Carburettor Ice Warning System directly from us.

Contact us
  • Uses highly accurate sensor technology
  • Low power consumption with automatic shutdown and low battery alert
  • Easy to install and simple use
  • Compact, aerodynamic design
  • Durable, water resistant case
  • Secure attachment facility.
  • Temperature range: -20 ºC to +70 ºC
  • Measurement range: -5 ºC to +40 ºC
  • Sample timer: 4 sec
  • Snooze timer: 15 min
  • Shutdown timer: 120 min
  • Battery low: ≤ 2.25V
  • Cell type: CR2032, 3V
  • Dimensions: 40mm x 30mm x 30mm
  • Weight: 45g

On/Off

Pressing the function button toggles between on and off. A Green/Red indicator is shown momentarily when the unit is switched On/Off respectively. Whilst on, the Green indicator blinks once every 4s to indicate that the unit is running and monitoring for icing conditions.

Ice alert

If serious icing conditions are detected then the Red indicator flashes eight times every 4s until the conditions have passed, the user initiates the snooze feature or the unit is switched off.



Snooze

Pressing the function button once during an ice alert initiates the snooze feature. This will mask any further alerts for 15 minutes. Whilst snoozing, the Red indicator will blink once every 4s to remind the user that alerts are being masked.



Auto shutdown

If the unit has been running for approximately two hours then it will automatically turn itself off to preserve battery life.

Step 1- Installing/Replacing Batteries

Your Carburettor Ice warning system should come with a CR2032 coin cell already installed and ready to go. If this is the case then you will need to remove the insulating clip prior to use. However, if this is not the case then you will need to remove the silicon housing by pealing it back. This will reveal a transparent inner case. Remove the battery cover and insert/replace the CR2032 battery. Replace the battery cover and silicon housing and continue use as normal.

Step 2 – Deciding on Placement

You should carefully decide where you are going to put your Carburettor Ice warning system. Ideally, this should be a fixed position in your field of view to maximize visibility. It should also be in reach so that the function button is accessible. The unit should be placed in a thermally neural area and have access to outside airflow.

Step 3 – Attaching

Exactly how you attach your carburettor ice warning system will depend on what you are attaching it to. The unit is designed to be attached to rigid tubing with a diameter of at least 25mm. The silicon housing is designed to be stretched around the tube and hooked back onto itself. Tie wraps should be used to lock the device securely to the tube to prevent detachment during use.
